630 CAMS - Vicious power gains, wide streetable power band from a high lift profile camshaft for high performance engines with highly modified cylinder heads and compression ratio. Carburetor and or throttle body work required along with a performance exhaust and intake system. Maintains low end performance with eye blurring mid and top end power. High performance valve springs, pushrods, lifters and clutch required. RPM 2,500 - 6,900+
UPDATE YOUR OLD MECHANICAL STYLE CAMS AND TENSIONERS TO THE NEW HYDRAULIC STYLE TENSIONER SYSTEM

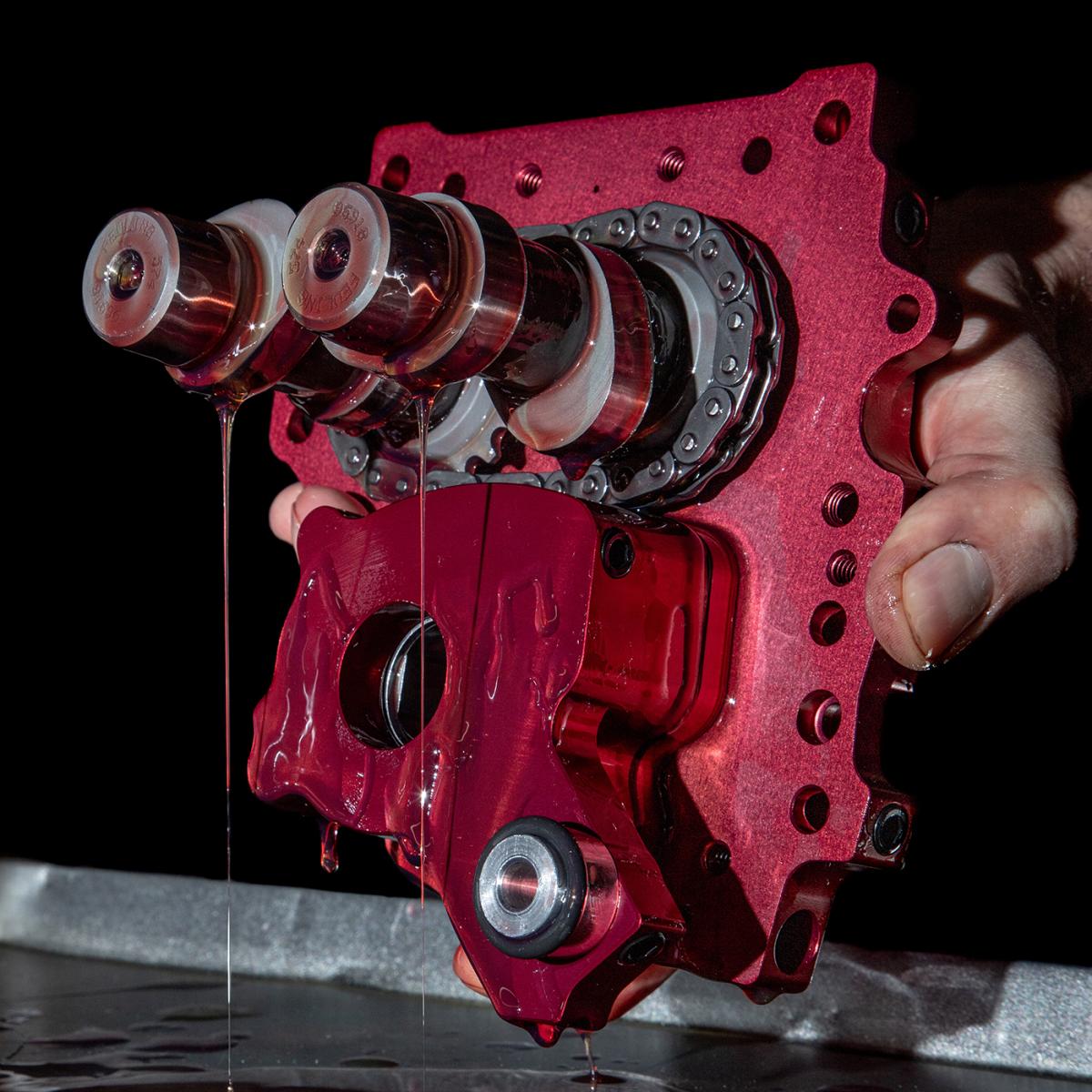

Conversion camshafts for ’99-’06 Twin Cam engines utilize the ’99-’06 inner cam journals with the ’07-’16 outer cam journals allowing the use of the ’07-’16 camplates, oil pump, hydraulic chain tensioners and chain drive system.
*Conversion camshafts do not fit in a conversion camplate, conversion camshafts use the '07-'17 camplate/oil pump
Twin Cam 'Conversion' Chain Drive ’99 – ’06 (Except ’06 Dyna)
Part # 1016¹ - (525CC Conversion Cam) - 525” Intake, 535” Exhaust
Part # 1015¹ - (543CC Conversion Cam) - 543” Intake, 553” Exhaust
Part # 1017¹ - (574CC Conversion Cam) - 574” Intake, 574” Exhaust
Part # 1019¹ - (594CC Conversion Cam) - 594” Intake, 604” Exhaust

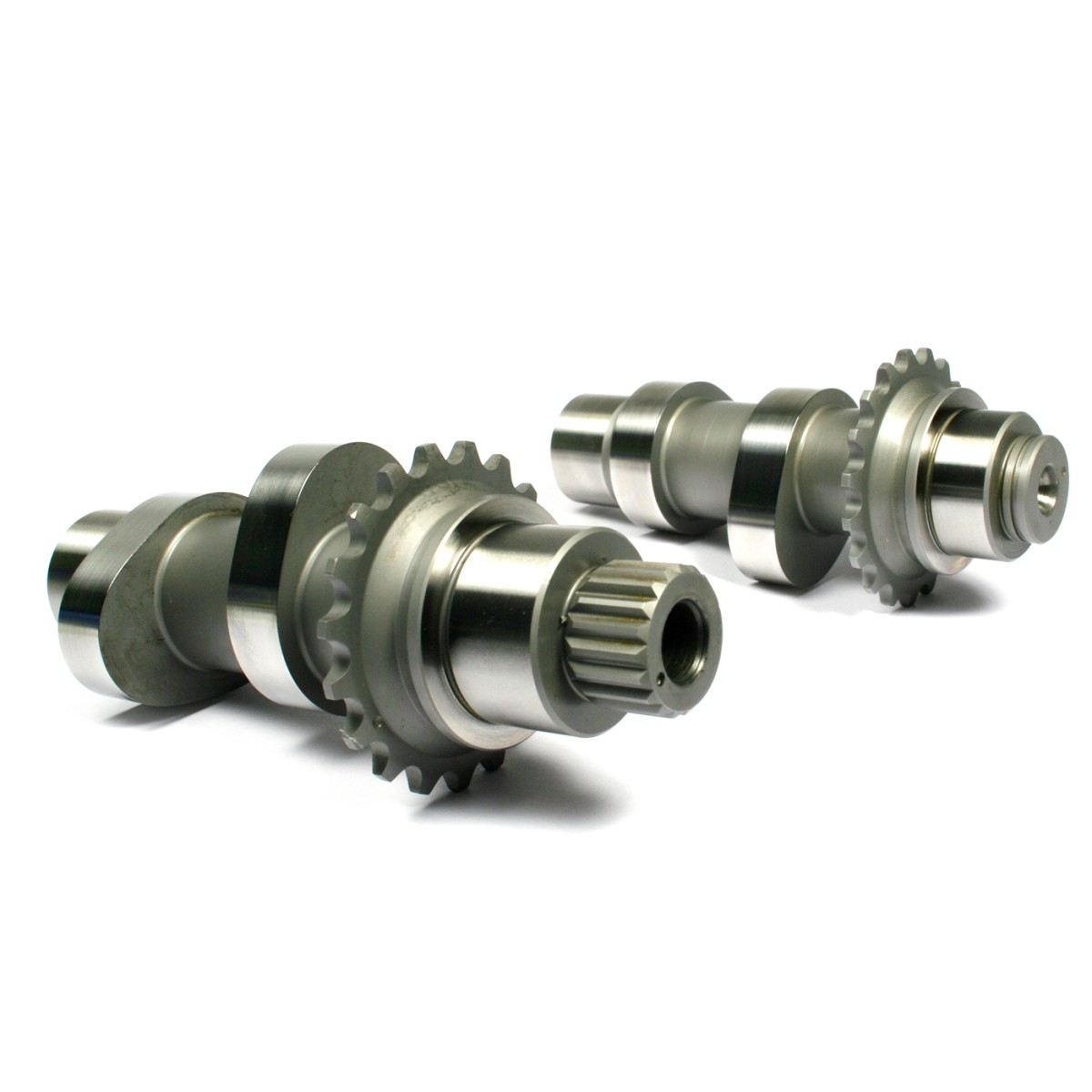

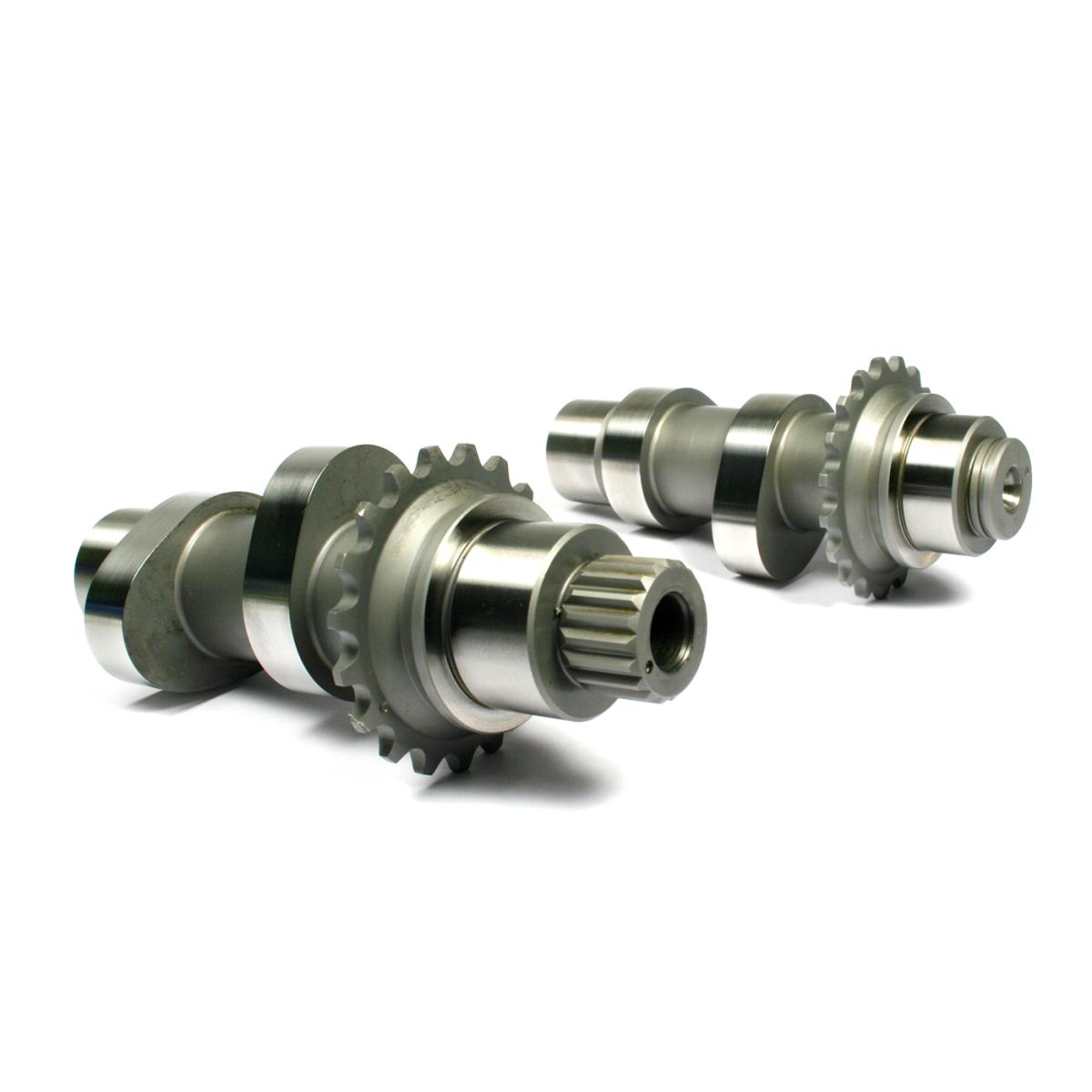

Part # 1018¹ - (630CC Conversion Cam) - 630” Intake, 630” Exhaust
¹Factory hydraulic tensioners, outer cam & crank sprockets and thrust washers required, purchased separately - See #8080 & #8083
DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES
REQUIRED COMPONENTS FOR CONVERSION CAMSHAFTS - SEE KIT #8080 & 8083 / #7087 & 7088
Installing conversion camshafts in '99-'06 style T/C engines, require use the '07-'17 style camplate and oil pump along with the following:
Qty. 1 FEULING #8061 HD # 25675-06 Outer chain
Qty. 1 FEULING #8060 HD # 25683-06 Inner chain
Qty. 1 FEULING #1091 HD # 25673-06 Outer crank sprocket 17 tooth
Qty. 1 FEULING #1092 HD # 25728-06 Outer cam sprocket 34 tooth
Qty. 1 FEULING #8075 HD # 39968-06 Outer hydraulic tensioner unit
Qty. 1 FEULING #8076 HD # 39969-06 Inner hydraulic tensioner unit
1 - Bolt kit (2 - 1/4-20 x 3/4") (2 - 1/4-20 x 1-1/4")
Qty. 1 FEULING #8041 Spacer kit Includes the following note installation requires qty. 2 of the following spacers, NOTE: correct spacer thickness is a must for proper sprocket alignment
1-# 25729-06 Thrust washer - front cam .100
1- # 25731-06 Spacer (.110 for cam alignment; use as required)
1 - #25734-06 Spacer (.120 for cam alignment; use as required)
1 - #25736-06 Spacer (.130 for cam alignment; use as required)
1 - #25737-06 Spacer (.140 for cam alignment; use as required)
1 - #25738-06 Spacer (.150 for cam alignment; use as required)
NOTE: '99-'01 engines with Magneti Marelli ignition requires use of Andrews sprocket #216015 in replacement of HD 34 tooth sprocket #25728-06 in order to install the new style outer cam chain
